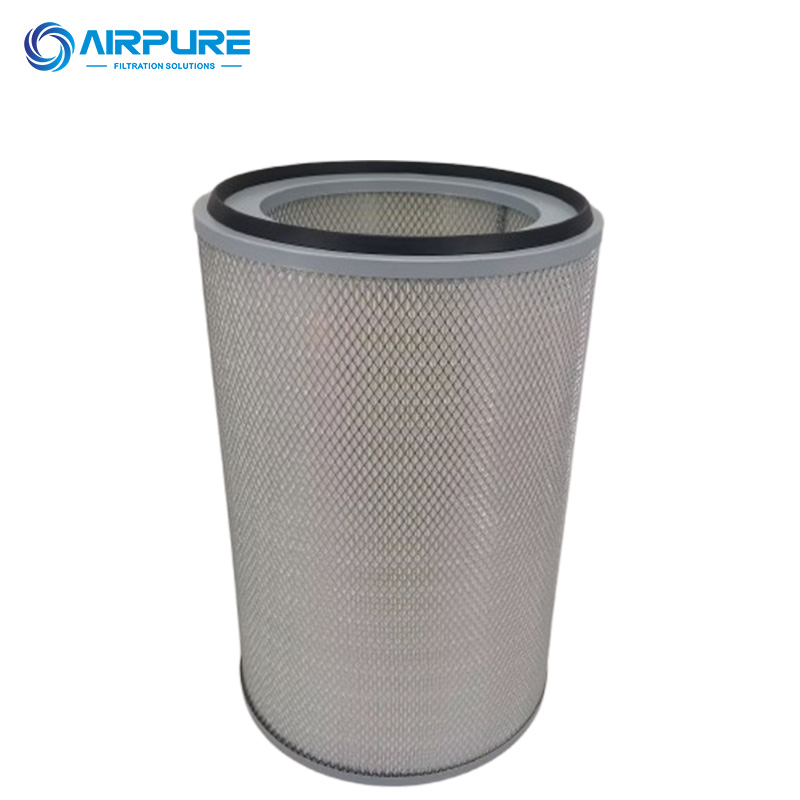

Our Air Compressor Air Filter serves as the critical first line of defense for your air compression system. It is specifically designed to effectively remove dust, sand, metal debris and other solid contaminants from the intake air, safeguarding the compressor’s precision components such as screw rotors and bearings against wear. This filter not only extends the service life of downstream equipment but also reduces energy consumption and ensures the quality of compressed air, making it widely applicable to various types of air compressors in industrial, manufacturing and commercial fields.

Technical Parameters

Filtration Precision: 1-10μm (Precision type available: 0.01μm)

Filtration Efficiency: ≥99.8% (up to 99.99% for precision models), complying with ISO 16889 standard

Initial Pressure Drop: ≤0.2bar (≤0.02MPa)

Alarm Pressure Drop: 0.5-0.7bar (0.05-0.07MPa)

Operating Temperature: -20℃ to 100℃

Operating Humidity: ≤100% RH

Service Life: About 2000 hours (varies with working environment)

Filter Media: High-quality wood pulp filter paper or glass fiber, with excellent dust-holding capacity

Certification: ISO 9001, ISO 8573-1

Featuring a simple structure and easy installation and maintenance, our air filter can effectively reduce your operating costs and ensure the stable and efficient operation of your air compressor system.
