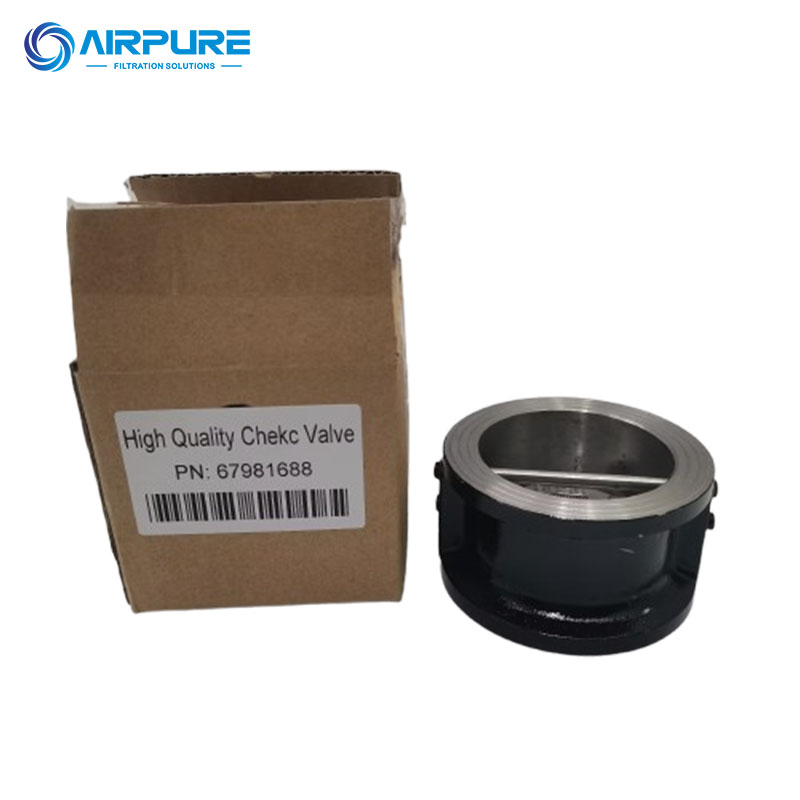

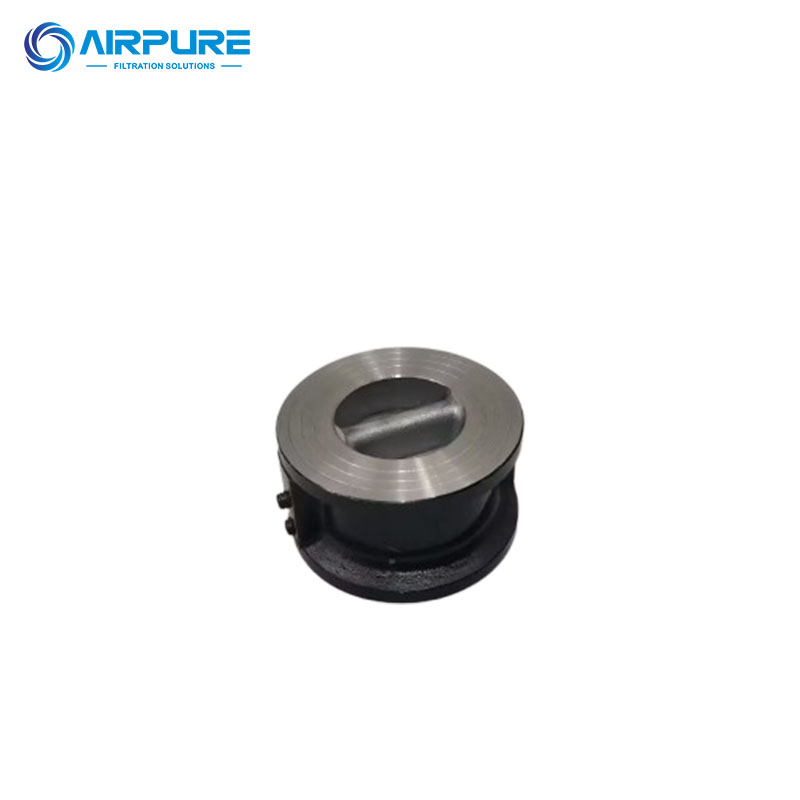

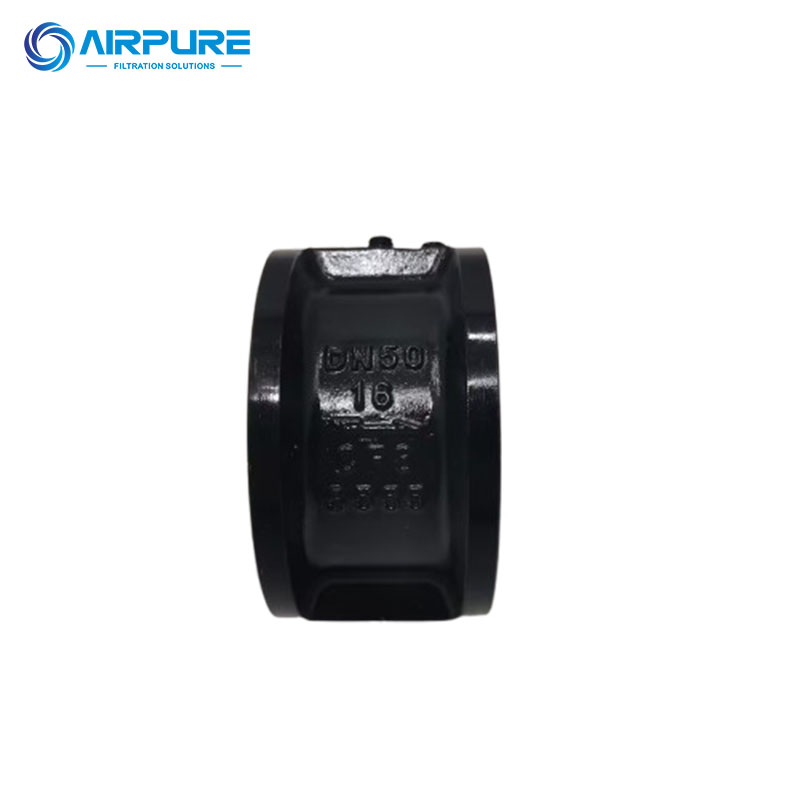

Gas Check Valve (One-Way Gas Valve)

A gas check valve (also known as a non-return valve or one-way valve) is an automatic safety component designed to allow gas to flow in only one direction and prevent dangerous backflow in gas supply systems. It is widely used in residential, commercial, and industrial gas pipelines to ensure system safety and stable operation.

Core Function

· Unimpeded Forward Flow: When gas flows in the correct direction (from supply end to user end), the gas pressure pushes open the internal moving part (disc, ball, or flap) to allow smooth passage.

· Automatic Backflow Prevention: If gas attempts to flow backward (due to pressure reversal, system shutdown, or equipment failure), the internal mechanism (spring or gravity) instantly closes the valve, blocking reverse flow and avoiding risks like gas leakage, mixed gas formation, or equipment damage.

Main Components

1. Valve Body: The outer shell (usually brass, stainless steel, or cast iron) that houses internal parts and connects to pipelines.

2. Moving Element: A disc, ball, or flap that controls flow opening/closing.

3. Spring/Gravity Mechanism: Provides closing force to keep the valve sealed when there is no forward gas pressure.

4. Sealing Ring: Ensures tight sealing when the valve is closed to prevent micro-leaks.

Working Principle

1. Forward Flow State: Incoming gas pressure overcomes spring force, pushing the moving element away from the seat. The valve opens, and gas flows through.

2. Backflow/No-Flow State: When forward pressure drops or reverses, the spring (or gravity) pushes the moving element back to the seat. The valve seals tightly, stopping reverse flow.

Key Features

· Low Cracking Pressure: Opens with minimal forward pressure (typically 4–10 mbar), suitable for low-pressure gas systems (e.g., natural gas, propane).

· Minimal Pressure Drop: Optimized internal design reduces flow resistance, saving energy and maintaining stable downstream pressure.

· High Sealing Reliability: Precision-machined seats and durable seals ensure long-term leak-tight performance.

· Compact & Installable in Any Orientation: Small size saves space; can be installed horizontally or vertically (spring-loaded types).

Common Applications

· Residential: Natural gas lines for stoves, water heaters, and heating systems.

· Commercial: Restaurant kitchen gas pipelines, hotel heating systems.

· Industrial: Gas transmission pipelines, biogas plants, laboratory gas systems, medical gas supply, and thermal process equipment.

Material Selection

· Brass: Cost-effective, corrosion-resistant, ideal for low-pressure residential/commercial use.

· Stainless Steel: High strength, excellent corrosion resistance, suitable for industrial, high-pressure, or corrosive gas environments.

· Engineering Plastics: Lightweight, low-cost, for low-pressure, non-toxic gas applications (e.g., beverage carbonation).
