XPA2182 Narrow Wedge V-Belt Product Introduction

1. Product Overview

Model: XPA2182 XPA2182 is a raw-edge cogged narrow wedge V-belt complying with DIN 7753 & ISO 4184 metric standards, with a datum length of 2182mm, XPA cross-section (13mm top width, 10mm thickness). Adopting premium EPDM rubber composite and high-strength low-stretch polyester tensile cords, it delivers high power density, stable torque transmission and outstanding heat dissipation, ideal for high-speed, compact industrial drive systems

PA Cogged VBelt Cross-section

2. Core Technical Parameters

· Part No.: XPA2182

· Section Type: XPA narrow wedge cogged V-belt

· Datum Length: 2182 mm

· Top Width: 13 mm

· Belt Thickness: 10 mm

· Construction: Raw edge cogged

· Reinforcement: Polyester tensile cords

· Main Rubber Material: EPDM synthetic rubber

· Temperature Range: -30℃ ~ +100℃

· Max Allowable Belt Speed: 30 m/s

· Standard: ISO 1813 antistatic, DIN 7753, ISO 4184

3. Key Features & Advantages

1. High Power Transmission Capacity Narrow wedge profile transmits 1.5–2 times more power than classic wrapped V-belts of the same width, supporting heavy-load compact drive designs to save equipment space and weightBinlong.

2. Cogged Raw-edge Design for Low Heat Build-up Bottom transverse cogs improve flexibility on small-diameter pulleys, accelerate heat dissipation, reduce belt overheating and cracking during long-hour continuous operationGrainger.

3. Ultra Low Elongation & Stable Running Pre-stretched polyester cords are tightly bonded with rubber matrix, minimizing permanent stretch after installation; uniform load distribution cuts vibration and slip rate, ensuring consistent power output.

4. Multi-resistance Performance EPDM compound offers excellent resistance to oil, heat, abrasion and aging; antistatic property meets industrial safety standards, suitable for dusty, oily workshop environmentsTimken Bel....

5. Long Service Life & Low Maintenance Uniform sidewall contact with pulley grooves reduces pulley wear; stable dimensional accuracy enables matched-set collocation for multi-belt transmission, lowering replacement frequency and downtime costs.

4. Wide Application Scenarios

· Air compressors, blowers, water pumps

· Machine tools, textile machinery, food processing equipment

· Fans, HVAC systems, generator sets

· Light construction & agricultural machinery

· General industrial high-speed power transmission drives

5. Purchase & Matching Tips

· Compatible with standard XPA metric pulley grooves; match datum length 2182mm strictly during replacement

· Available in single unit or matched sets for multi-belt parallel drives

· Support OEM printing of brand logo and part number on belt surface

· RoHS & REACH compliant, industrial long-term supply stable

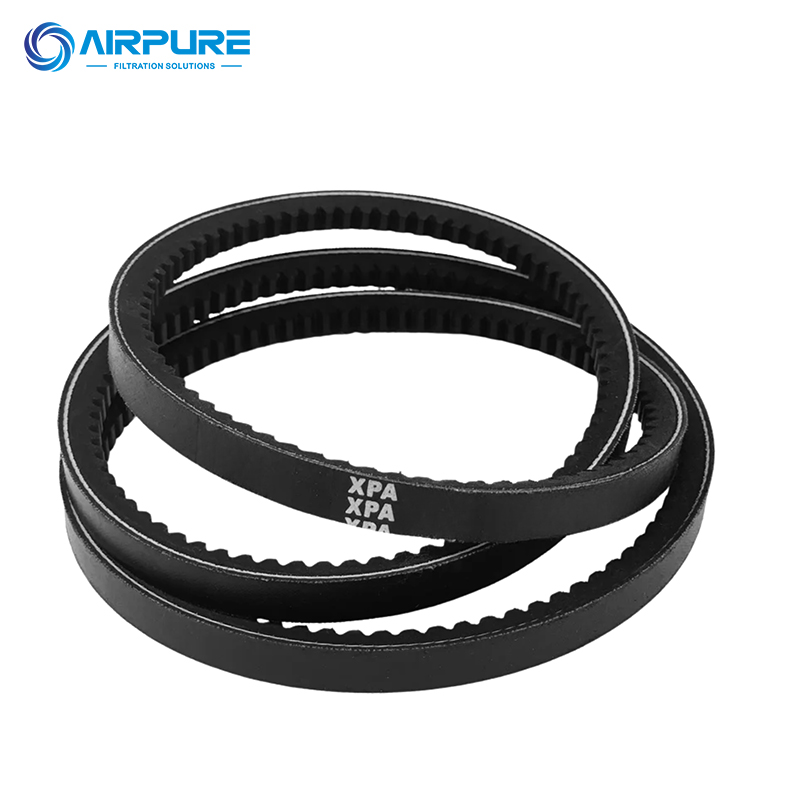

XPA2182 Cogged Narrow V Belt

XPA2182 raw edge wedge V-belt, datum length 2182mm, XPA cross-section. Made of EPDM rubber + high tensile polyester cords, anti-oil, anti-heat, antistatic. Cogged design runs cooler on small pulleys, high power transmission, low stretch, long service life. Widely used for compressors, pumps, fans, machine tools and industrial transmission equipment. Standard ISO & DIN metric size, ready stock, OEM service available.
