Hydraulic oil filter element 932891Q 929927Q
-
Brand :
Airpure -
Material:
imported glass fiber -
Filtration Rating:
5um -
Feature :
High Efficiency -
Application :
Hydraulic oil filter element for refrigeration system
- Product Details
- Technical Parameter

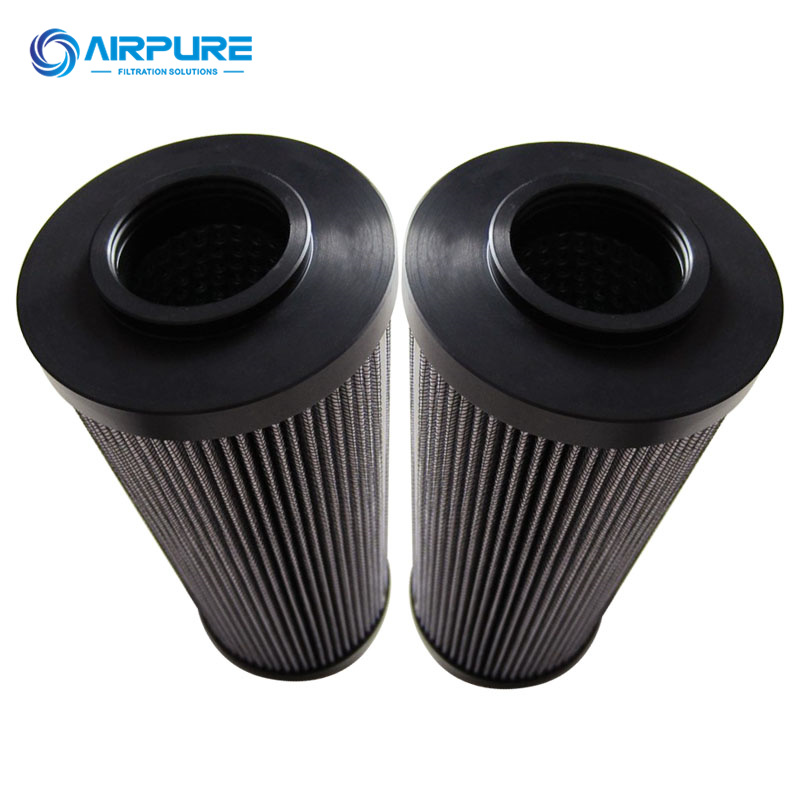

Product Introduction：
Our Hydraulic Oil Filter Element is a high-performance filtration component designed to protect hydraulic systems from harmful contaminants, extend equipment service life, and ensure stable and efficient operation. It is widely applied in construction machinery, industrial hydraulic equipment, agricultural machinery, automotive hydraulics, and other fields, providing reliable filtration solutions for various harsh working conditions.
With advanced filtration technology and strict quality control, our filter element effectively removes solid particles, impurities, and moisture from hydraulic oil, preventing wear, clogging, and damage to key components such as hydraulic pumps, valves, cylinders, and motors. It plays a crucial role in maintaining the cleanliness of hydraulic oil, reducing maintenance costs, and improving the overall reliability of the hydraulic system.
Filtration Performance：
Filter Rating：1μm, 3μm, 5μm, 10μm, 20μm, 30μm, 50μm, 100μm
Filtration Efficiency (Beta Ratio)：βₓ≥100 (≥99% efficiency)
Initial Pressure Drop：≤0.02 MPa @ rated flow
Bypass Valve Opening Pressure：0.3–0.35 MPa (3.0–3.5 bar)
Burst Pressure：≥0.7 MPa
Application Fields：
Our Hydraulic Oil Filter Element is widely used in various industries, including but not limited to:
Construction Machinery: Excavators, loaders, cranes, bulldozers, etc.
Industrial Equipment: Hydraulic presses, injection molding machines, machine tools, conveyor systems, etc.
Agricultural Machinery: Tractors, harvesters, agricultural irrigation equipment, etc.
Automotive Industry: Heavy-duty trucks, engineering vehicles, hydraulic power steering systems, etc.
Other Fields: Marine hydraulic systems, aerospace hydraulic equipment, mining machinery, etc.
We are committed to providing high-quality hydraulic oil filter elements with professional technical support and perfect after-sales service. Choosing our filter element is choosing reliability, efficiency, and cost savings for your hydraulic system.
2010PM-OR | 2020PM | 2040PM | 2020 30 microns | 2020 20 microns | 2040 30 microns |
38P1-10Q | 925520 | 925835 | 925023 | 924453Q | 926835Q 10Q VD |
926888Q | 921999-10C 12AT | 927736-10C 50AT | 927694 | 92199910C/K22001/FA35-10 | 938765 |
933180 | 933155Q | 932618Q 10Q ZL | 937778Q | 932694Q | 932679Q |
938244Q | 933812Q | 932683Q | 932651Q | 938304Q | 937394Q |
937395Q | 937396Q | 932670Q | 932627Q | 937397Q | 937398Q |
937399Q | 938291Q | 933734Q | 933612Q | 932874Q | 939942Q |
938303Q | 937862Q | 935122 | 935520Q | 937731 | 938348Q |
938075Q | SF3-40 LP 937968 | 937782Q | 938706 (TXX8A-10-N) | 938724Q | 939017 |
940802 | 940803 | 940971Q | 940734 | 943733Q | 943519Q |
943929Q | 943804Q | 9551.424 | G01372 | G04268 | G04048 |
G04250 | G04251 | G04252 | G04253 | G02718Q | GO4243 |
GO4260 | GO4276 | G01281 | GO4272 | G04244 | G04167Q |
G04248 | HFP 43605-S | HFP43610-S | HFP43625-S | HSP-43610-S | HSP44410 |
PR3088Q | PR3059Q | PR3153Q | PR3438Q | PR4500=0100RN010BN3HC | PR4510Q=PI23040RNSM-X10 |
PR3453Q=0240D010BH4HC | PR2864Q | R90P | R90T | R76115 | R26sul |
R120T | R60S-PH-FG | 500FG | MX1591.4.10 | MX1518.4.10 | TXX4-10-B |
FC7003Q020BK | FC7273.H003.BS | FC1073.0020BS OA-L2507 | 27SZ | 6CU25-130 | 10CU25-130 |
UCMXR9550（MXR9550） | UC-MXR-9550 | UC-MX-1591 | ZCSGK -020C-P | ZCSG1 -020C-P | ZCPP1 -1.0C-P |
170-L-222A | 170-L-223A | 270-L-122A | 270-L-123 | 270-L-223A | 370-L-222A |
370-L-322A | 100-12-BX | 200-80-371H | 200-80-Dx | FTCE1B10Q | F20-00WJ/M1 |
Txx4-10 | 10CWC15-070 | 4CWC15-070 | FC1072Q010BSFF/023 | FFPAM11091-88-60 | 7021020000 170L123A |
4CU51-280X1 | D-41849 | 932006 | HOCP-44810 | 100-25-DXS | 74W 924456 |
G01938Q | 706202619257 | 939336Q | 939337Q | TXW8D 10-B-QA-C2405=938028Q | 936718Q 对应过滤器 80CN-2-20Q-EVM3KG324 |
940817Q | 200-80-BX | 937863Q | HPR1719 | FBO60353 | FBO60337 |
937857Q | 270-L-110 | R160T | CST45003-03 | 940818Q | 932664Q |
943742Q | 937855q | 944432Q | 939609Q | 936704Q | 938275Q |
G01954Q | G01930Q | 936601Q | BF1329-O-C | 15PP005-60CEA | 936717Q |
930192Q | 932630Q | 2010PM | 937723 | 937726 | 200-35DX |
RACOR 77/1000FG-2914 8086 00 | CST45003-12 | 050-11-DQ | R20P | R160DIVEC01 | SCC-1122-C |
BEP319-19 | 61163139V | 61163139Y | PFFDW51125 | 937981Q | 926169 |
926541 | 937952Q | FBO60338 | 937859Q =922315.0004 | WAZP0001T2 | 927666 |
PR4515Q | 926837Q | 2020PM-OR | 940736 | BALSTON 200-35-BX | BALSTON 200-35-DX |
BALSTON SA-19-150 | TXWL8C-10 | LXW1-5-B | 932642Q | 938366Q | 932891 |
G04284 | G04285 | 938979Q | 935236 | PR4505Q | 937072Q |
938279Q | 937953Q | 937074 | 930191Q | 943713Q | 937795Q |
937280Q | 937936Q | 937984Q | G04288 | R160P | 926170 |
FO-629PLF2 | FO-629PLF1 | 933046Q | AD-64425 | MFE3900 | T-UL-03A-20U-DK-L |
Z-BP08100-40UW-DK-L | 150-19-DX | TXW5ACC25 | 1000FH | 944420Q | 933047Q |
F504-02DHS 派克 | 200-16-371H | FTCE1A20Q | R.63123 | 938048Q | 937393Q |
G04256 | PR3095Q | 40CN225W-TW | R45T | 341N03 | 931886 |
HCP-43625-S | M22A-F12L-100-NE-SS | TXW5ACC255 | 926841Q | L1151 - 1" | 936709Q |
FTCE2A10Q | 925774 | G04264 | 933814Q | 932891Q | 932687Q |
923551 | 929927Q | 937982Q | HPR.1719 | 937781Q | 943718Q |
908648-10C | 89781969 | 937275Q | 925792 | 907089 | 2040N-10 |
936700Q | 932611Q | 926845Q | G019938Q | T800-344-3286 | 944433Q |
944444Q | 944440Q | 038P-1-10Q-TW6 | 939066Q | 941037Q | CP-56678-TB |
HFP-56610-S | 936711Q | 932619Q | GO1372 | 92199910C | 933136Q |
940523Q | PR4506Q | PR4531Q | G02721Q | 936710Q | SE75231211 |
936705Q | I-628-MMTB | I-6542 | SO-644V | XP-G1-4100V | FP718-10N |
FP736-10N | 924450 | 944595Q | H00834003 | GLF4310QIBP2GR40MF | 944894Q |
944447Q | EPF4105QIBT1MX201 | 944892Q | GLF4110QIBP2GR40MF | 938287Q | G04316 |
944419Q | 938777Q | 944439Q | 939130 | 939128Q | 932624Q |
944438Q | 937878Q | 944587Q | FTBE2A05Q | 944436Q | G02724Q |
929899Q | 944420Q SH51418 | 940819Q | 933804Q | GO3460Q |
